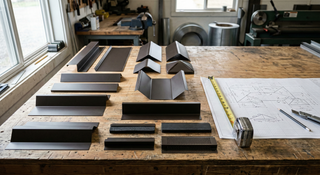

Metal Roofing Trim Takeoff Guide 2026: Build a Complete Edge and Transition Package

Most metal roof leaks and most metal roof delays come from the same place: edges and transitions. This guide shows how to identify every trim and closure you need, measure it correctly, and order a complete package the first time.

Why this guide exists

Metal roofing is premium, but most project pain is not caused by the field panels, shingles, shake, or tile. The pain comes from the small parts that control water at the perimeter, the ridge, the valleys, and every place the roof hits a wall or a penetration. When trim and closures are incomplete, installers improvise. Improvisation creates delays, change orders, mismatched colors, and leak risk that shows up months later.

Top Tier Metals is supply only, which means the order needs to be complete before the first piece goes on the roof. The goal is simple: identify every edge and transition, measure it once, and order an accessory package that matches the roof system and the roof geometry.

This guide is takeoff-focused. If you want a general overview of accessory and trim options for customizing a roof, Top Tier Metals already has a separate resources article for that. This one is about completeness, measurement, and the specific failure zones that cause leaks.

Core definitions you need before measuring

Trim vs flashing vs closures

Trim is formed metal that finishes edges and covers joints. Trim also directs water and blocks wind-driven rain entry paths.
Flashing is trim used specifically to weatherproof transitions, such as valleys, roof-to-wall intersections, chimneys, and headwalls.
Closures are shaped fillers that seal the profile openings created by panels or some stone-coated systems. Closures stop wind-driven rain, insects, and debris from entering under caps and edge metal.

Why roofs fail at edges and transitions

Edges and transitions see the worst combination of forces:

Wind pressure changes at corners and perimeters increase uplift and panel movement.
Water volume concentrates at valleys, down-slope transitions, and gutter lines.
Ice and debris dams push water sideways and upward under laps in freeze-thaw climates.
Thermal movement stresses fasteners and joints over time, especially where different materials meet.

Because of this, trim and flashing planning is not optional. It is the difference between a roof that stays dry for decades and a roof that becomes a recurring maintenance problem.

Start with your roof system category

The trim list changes depending on what type of metal roofing you are installing. Use these categories to set your baseline, then confirm system-specific details in manufacturer documentation.

Metal panel roofing and standing seam

Panel systems use formed trim and flashing that integrates with panel ribs, closures, and underlayment strategy. Exposed fastener panels also rely heavily on proper trim laps and correct fastener placement at edge metal.

Stone-coated metal shingles, shake, and tile

Stone-coated systems use their own accessory families and often require specific rake, ridge, hip, and valley components that match the profile geometry. The principle stays the same: your accessory family should match the roof system, and your takeoff must include every edge and transition.

What you should not do

Do not mix accessory families without a plan. A roof may still look fine on day one, but mixed components often create geometry mismatches, water paths that were never tested together, and color inconsistencies that show up under daylight.

Trim map by roof zone: what each piece does and where it belongs

Use this section as your trim inventory. You will identify which of these conditions exist on your roof, then measure each condition in the takeoff section.

1) Eave zone: where water exits the roof

The eave is the lower edge of the roof where water leaves the roof plane. This zone controls gutter performance, fascia protection, ice protection, closure strategy, and the first line of defense against wind-driven rain.

Drip edge directs water off the roof edge and reduces capillary pullback onto fascia.
Gutter apron or eave flashing bridges the gap from roof deck to gutter line and helps keep water from running behind gutters.
Starter or starter strip is used in some systems to lock or align the first course or panel edge.
Eave closures seal panel profile openings at the eave. Some roofs need inside closures, outside closures, or both depending on the detail and venting plan.
Ice and water protection is not trim, but it is a required planning item at eaves in many climates and is directly tied to eave trim performance.

Eave mistakes that cause leaks and rot:

Missing closure strips that allow wind-driven rain and pests to enter under the first trim line
Edge metal that does not direct water into the gutter line, causing water behind gutters
Underlayment that is not integrated with eave metal, allowing water to track under the roof edge

2) Rake and gable zone: the wind-driven rain edge

The rake is the sloped edge of a gable roof. Wind-driven rain often hits this edge first, and uplift forces are higher along perimeters.

Rake trim or gable trim closes and finishes the gable edge while directing water away from the edge seam.
Hemmed edges and cleats stiffen trim and improve water control at the termination.
Rake closures may be required depending on panel profile and edge detail to prevent wind-driven entry under the trim.

Rake mistakes that cause noise and movement:

Trim that is not stiff enough for the wind exposure and begins to flutter
Fasteners placed in high-flow water paths where water concentrates during heavy rain
Gaps at the panel profile that allow water to enter under the rake trim

3) Ridge zone: the cap line and ventilation decision

The ridge is the horizontal peak where two roof planes meet. Ridge trim is not only a cover. Ridge trim is part of the weather plane and often integrates closures and ventilation.

Ridge cap covers the ridge and prevents water and debris entry along the peak.
Vented closures can allow airflow while still closing the panel profile openings.
Non-vented closures fully seal the profile when ridge ventilation is not used or when ventilation is handled differently.
End caps close the ends of ridge runs to keep water and pests out.

Ridge mistakes that cause leaks and condensation confusion:

Ridge vent installed without adequate soffit intake, creating weak airflow and moisture issues
Missing closures under ridge cap allowing wind-driven rain entry
Fasteners that are not installed consistently, creating micro-gaps at the cap line

4) Hip zone: the diagonal ridge

Hips are the diagonal intersections where two roof planes meet and form a ridge that runs down to the eave.

Hip cap covers the hip line similar to ridge cap but sized and detailed for the hip geometry.
Hip closures seal profile openings beneath the cap depending on system design.
Hip end details at the lower termination must be planned so water does not track under the cap into the roof system.

5) Valley zone: the highest water volume line

Valleys are where two roof planes meet and water concentrates. Valleys are a primary leak zone because they combine high water volume with debris dams and ice loads.

Valley pan or valley flashing is the formed metal that channels water down the valley line.
Open valley details leave the valley metal exposed to carry water and debris cleanly.
W valley details use a formed valley shape that can help keep water centered depending on system design.
Valley diverters may be needed where a steep plane dumps water into a lower plane at a concentrated point.

Valley mistakes that cause chronic leaks:

Fasteners placed in high-flow valley paths where water volume is highest
Underlayment not upgraded at valleys in climates that see ice or heavy debris loads
Improvised valley metal that does not match the roof system geometry

6) Roof-to-wall zones: sidewall and headwall transitions

Any place the roof runs into a vertical wall is a flashing zone. These are common leak zones because wind pushes water sideways and upward, and because walls introduce complex termination geometry.

Sidewall flashing is used where the roof runs parallel to a wall.
Headwall flashing is used where the roof terminates into a wall on the upslope side.
Counterflashing is sometimes used when the wall finish requires a secondary cover and water-shedding layer over the step or base flashing.

Wall transition mistakes that cause hidden rot:

Flashing that is not integrated with the water-resistive barrier on the wall assembly
Termination gaps that allow capillary water entry behind flashing
Sealant used as the primary dam instead of correct overlap geometry

7) Pitch change and transition zones: where geometry shifts

Transitions occur where the roof pitch changes, where a lower roof meets a higher roof, or where the roof transitions to a different covering or different plane direction.

Transition flashing bridges the change in plane and directs water onto the lower surface.
Apron flashing is commonly used where an upper plane discharges onto a lower plane or into a wall detail.
End-lap and panel termination components must be planned so water does not track back under the upper termination.

8) Penetration accessories that impact trim takeoff

Penetrations are not trim, but they drive accessory completeness. Every pipe, vent, skylight, and chimney changes the flashing plan, fastener plan, and sealant plan. Your trim takeoff should include a list of penetrations so the accessory package is complete.

Closures: the small parts that prevent big problems

Closures are shaped fillers that close the panel profile openings beneath trim lines. Closures are one of the most commonly missed line items because they do not look impressive in a quote, but they directly control wind-driven rain entry, insect entry, and debris intrusion.

Common closure types

Inside closures are often used beneath caps where the closure sits between the panel and the trim.
Outside closures are used where the closure sits on the exterior side of a profile opening depending on detail design.
Vented closures allow airflow while still closing most of the profile opening, often used near ridge vent details.

Closure planning rules that reduce leaks

Use closures wherever the panel profile creates an entry path under ridge cap, hip cap, or eave trim
Use vented closures only when the ventilation design requires airflow through that line
Do not skip closures in windy regions or on roof planes that face prevailing storms

Takeoff method: measure trim and flashing without missing anything

This method is built for homeowners and contractors who want a clean, repeatable way to quantify accessory scope. The goal is not perfection on the first pass. The goal is a complete inventory of every condition so nothing is discovered mid-install.

Step 1: draw a roof edge map

Start with a simple roof sketch. You are labeling conditions, not building blueprints. Mark every location where the roof has:

Eaves
Rakes and gables
Ridges
Hips
Valleys
Roof-to-wall sidewalls
Roof-to-wall headwalls
Pitch changes and transitions
Penetrations that require boots or curbs

Step 2: measure each condition in linear feet

Trim and flashing are primarily linear-foot items. Measure each labeled line on the roof:

Eave length total
Rake length total
Ridge length total
Hip length total
Valley length total
Sidewall length total
Headwall length total
Transition length total

Step 3: assign the correct trim category to each line

Not every eave uses the same detail. Not every wall uses the same flashing. As you assign trim categories, note special conditions that may change the part selection:

Gutters present or no gutters
Snow and ice exposure
High wind exposure
Wall finish type and whether counterflashing is required
Whether ridge ventilation is planned
Whether the roof system is panel, standing seam, or stone-coated

Step 4: add overlap and waste intentionally

Trim pieces require overlaps at laps, plus cutting waste at corners and transitions. Plan for laps and end cuts rather than assuming every piece fits perfectly. This is especially important for ridges, hips, and rakes where end caps and returns create additional cuts.

Step 5: build an accessory checklist by category

Use categories so nothing hides inside a single line item:

Edges: eave trim, drip edge, gutter apron, rake trim, closures
Caps: ridge cap, hip cap, closures, end caps
Valleys: valley pan, underlayment upgrade, diverters if needed
Walls: sidewall, headwall, counterflashing if needed
Transitions: transition flashing, apron flashing, termination details
Penetrations: pipe boots, skylight curb flashing, chimney backpan and counterflashing
Fasteners: panel fasteners, trim fasteners, stitch screws where applicable
Seal and tape: compression tapes, compatible sealant as secondary protection

Trim takeoff checklist table

Roof condition	What to measure	What to decide before ordering	Common miss that causes delays
Eaves	Total eave length	Gutter interface and closure strategy	Missing closures and missing gutter apron detail
Rakes and gables	Total rake length	Wind exposure and edge termination detail	Wrong trim profile and missing end returns
Ridges	Total ridge length	Vented vs non-vented ridge and closure type	Missing vented closures and missing end caps
Hips	Total hip length	Hip cap and closure type	Missing hip end termination detail
Valleys	Total valley length	Open vs W valley style and underlayment upgrade	Improvised valley metal and fasteners in flow path
Sidewalls	Total wall intersection length	Wall material and counterflashing plan	Missing counterflashing or incorrect termination
Headwalls	Total headwall length	Up-slope water control and termination method	Missing headwall detail and seal strategy
Transitions	Total transition line length	Water direction and termination geometry	Missing transition flashing and closure logic

Ordering checklist: what a complete trim package includes

Use this list before checkout. If any category is blank, the order is not complete.

Edge package

Eave trim components appropriate for gutter or no-gutter condition
Rake or gable trim for every gable edge
Closures for eave and rake conditions where profile openings exist

Cap package

Ridge cap for every ridge line
Hip cap for every hip line
Vented or non-vented closures based on ventilation plan
End caps and terminations for cap runs

Valley and water concentration package

Valley pan or valley flashing for each valley
Underlayment plan appropriate for valley exposure
Diverters where upper planes concentrate water

Wall transition package

Sidewall flashing where roof runs parallel to wall
Headwall flashing where roof terminates into wall
Counterflashing plan based on wall finish
Termination strategy that does not rely on sealant alone

Transition and pitch change package

Transition flashing for every pitch change
Apron flashing where upper plane discharges onto lower plane
Closures and termination details for transition ends

Fasteners and sealing materials

Correct panel or clip fasteners for the system and substrate
Trim fasteners and stitch screws where required
Compression tape where required beneath trim flanges
Compatible sealant as supplemental protection at terminations

Documentation and verification

Manufacturer installation documents for the specific system selected
Confirmed finish and color match across panels and accessory families
Delivery plan that avoids damage to long trim pieces

When you should stop and get an expert review

If any of the conditions below are true, an expert audit typically saves money and time because it prevents the most common missing-part reorders:

Multiple valleys and multiple dormers
Roof-to-wall intersections on more than one plane
Skylights, chimneys, or many penetrations
Low-slope sections or complex transitions
High wind exposure or heavy snow and ice exposure

FAQ

What is the most commonly missed trim item on a metal roof order

Closures and wall transition flashings are among the most commonly missed items. They are small, but they control wind-driven rain entry and leak resistance at high-risk zones.

Do I need different trim for exposed fastener panels vs standing seam

Yes. The accessory family and termination geometry can differ by system. Even when trim names sound similar, the part profiles and closure strategy may change to match the panel design and movement requirements.

How do I measure trim for a metal roof takeoff

Measure each roof condition in linear feet: eaves, rakes, ridges, hips, valleys, sidewalls, headwalls, and transitions. Then assign the correct trim category to each line based on system type, ventilation plan, and wall conditions.

Why do metal roofs leak at valleys and walls more than in the field

Valleys concentrate water volume and debris. Walls force water sideways and upward in wind. Both zones require specific flashing geometry and underlayment integration, and they fail quickly when improvised.

Next step

If you want the shortest path to a complete trim and flashing package that matches your roof system and roof geometry, start here.

Start my Roof System Audit for a complete trim, closures, flashing, and bill of materials review

If you prefer to talk through your roof layout and accessory plan first:

Get a free metal roofing consultation for trim takeoff and accessory planning

Shop metal roofing systems

Related Top Tier Metals resources

Get a complete Roof System Audit before you buy
