Metal Roof Flashing and Leak Prevention for 2026: Valleys, Sidewalls, Chimneys, and Pipe Boots

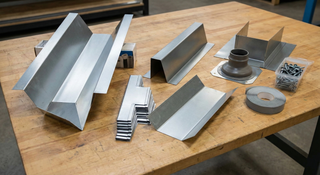

How metal roof flashing actually prevents leaks

Flashing is engineered transition metal that keeps water on the exterior of the assembly when the roof changes direction, terminates at an edge, or intersects a vertical surface. A good flashing detail does four things at the same time:

• Directs flow so gravity does the work and water stays on a downhill path.
• Creates overlap and cover so wind driven rain cannot back up under a seam.
• Blocks capillary action by maintaining separation, hems, and correct lap geometry.
• Controls pressure points by keeping fasteners and seams out of high flow zones.

Think in layers. The roof surface is the primary shedding layer. Flashing protects transitions and terminations. Underlayment and self adhered membrane provide secondary protection in critical zones. Tape, closures, and compatible sealants are there to reinforce the geometry, not replace it.

The five leak mechanics that show up over and over

• Backwater and volume where water concentrates, especially valleys and chimney upslope zones.
• Wind driven rain that pushes water sideways at sidewalls, headwalls, and profile openings.
• Ice and debris dams that slow flow and force water to hunt for gaps.
• Thermal movement that works seams and fasteners over time if the detail is not designed for expansion.
• Sealant dependence where caulk is used as the primary dam instead of proper laps, closures, and transitions.

Most fixes are not complicated. They come from putting fasteners in the right places, choosing the correct flashing approach for the system, and making sure the order includes every small accessory that the detail requires.

Valley flashing: the highest volume water path on the roof

Valleys collect flow from two roof planes and concentrate it into a narrow channel. Add leaves, snow, or a low pitch plane feeding into the valley and you get the most punishing water condition on the roof.

What a reliable valley detail includes

• A valley pan wide enough for pitch, run length, and expected volume, with clean laps and protected edges.
• A membrane plan for climates with freeze cycles or debris load, especially in the valley liner zone.
• A fastener exclusion zone to keep screws out of the main water channel unless the system explicitly requires a different approach.
• A termination plan for cut edges so water cannot migrate sideways under the roof surface.
• Closure strategy if profile geometry creates a wind driven entry path beside the valley channel.

Common valley leak causes to avoid

• Fasteners placed too close to the valley centerline or in locations where water consistently runs.
• Valley metal too narrow for the roof geometry, forcing water to ride the edges during heavy events.
• Missing self adhered membrane where ice or debris causes backwater pressure.
• Panels or shingles cut and ended without correct overlap, hem, or closure approach.

Valleys are also where small measurement errors show up. If your takeoff misses valley length, valley type, or where a valley terminates into an eave or gutter, you usually miss at least one critical accessory.

Sidewalls and headwalls: roof to wall transitions that leak when the detail is short

Roof to wall intersections are where water is pushed sideways by wind and turbulence. They are common on dormers, porch ties, second story walls, chimney chases, and any roof plane that dies into siding or masonry.

Key transition types

• Sidewall where the roof runs alongside a wall.
• Headwall where the roof terminates into a vertical wall.
• Kickout diverter at the base of a sidewall to force water into the gutter instead of behind cladding.

Leak causes that are predictable and preventable

• Missing kickout diverter where the sidewall ends.
• Flashing that does not extend high enough behind cladding or counter flashing approach.
• Underlayment that is not integrated as a continuous secondary plane at the transition.
• Sealant used as the primary water control instead of overlap and cover.

The practical planning rule is simple: any place a roof touches a wall, treat it like its own scope line item. Count the linear footage, identify sidewall vs headwall runs, and confirm which accessory family matches your chosen roof system.

Chimney flashing: geometry, backwater, and high consequence failure

Chimneys combine vertical surfaces, uphill water load, and multiple direction changes. Many chimney leaks start upslope where water slows and piles up behind the chimney. That is where a backpan or saddle detail matters most.

Chimney components to plan

• Apron flashing on the downslope face to shed water back onto the roof surface.
• Side step flashing plan for the chimney sides, integrated with the roof surface and correct laps.
• Backpan or saddle on the upslope face to redirect water around the chimney.
• Cricket where chimney width and roof pitch create excessive backwater load.
• Counter flashing strategy based on masonry joints, siding interfaces, and manufacturer guidance.

Chimney leak patterns to watch for

• Water staining or rot upslope and to the sides of the chimney due to missing backpan or cricket planning.
• Improper termination into masonry where counter flashing is not actually countering.
• Short flashing legs that leave a path for wind driven rain behind the assembly.

Chimneys are also where mixed materials show up. The safe approach is to keep compatible metals and to design for movement so flashing does not fatigue at corners and laps.

Pipe boots and vents: small penetrations that cause big leaks

Pipe penetrations look simple but fail when the boot is oversized, the flange is not sealed correctly to the profile, or the penetration is placed in a bad location like a high flow valley path or a trapped water zone.

Pipe boot planning checklist

• Confirm each pipe diameter and select a boot range that seals by compression.
• Select boot material suitable for roof temperature, UV exposure, and climate.
• Place penetrations away from valleys, end laps, and high turbulence zones when possible.
• Plan how the flange sits on the profile so it does not bridge voids without support.
• Include the correct fasteners, tape, and compatible sealant only where required by the system.

Most common pipe boot leak causes

• Boot cut too large so the pipe to boot seal never compresses.
• Boot installed on a high rib with poor flange contact and voids under the flange.
• Fasteners placed where water pools or screws are overdriven and deform the flange.
• Penetration placed too close to ridges, valleys, or transitions where flow behavior is unpredictable.

Edges and terminations: eaves, rakes, ridges, and hips

Edge metal and caps are not just finish trim. They control how water exits the system and how wind interacts with the roof. Many nuisance leaks start at edges because closures are missing, laps are wrong, or the termination does not match the profile.

Edge rules that reduce risk

• Use closure strategy where the profile creates openings at eaves, ridges, or transitions.
• Design for water to exit cleanly into gutters without backflow behind fascia.
• Keep laps consistent and protect exposed edges from wind driven rain entry.
• Do not treat ridge cap as decorative. It is part of the weather plane.

In snow regions, eaves and rakes also interact with snow slide and ice conditions, which can punish weak trim or short laps over time.

Tapes, closures, fasteners, and sealants: the small items that decide performance

Most leak investigations trace back to one of four root causes: missing closures, incorrect tape placement, incompatible sealant, or fasteners placed in the wrong location. The fix is rarely more sealant. The fix is correct geometry with the right supporting materials.

Practical leak prevention rules for 2026 planning

• Keep fasteners out of high flow water paths unless the system requires a specific fastening pattern.
• Use butyl tape for compression joints, especially under trim flanges and lapped interfaces.
• Use closures where the profile creates a wind driven entry path.
• Use sealant as supplemental protection, not as the primary dam.
• Keep accessory families consistent so finish and compatibility match the system.

Order checklist: what to include so flashing does not get missed

Use this as a final bill of materials cross check. Missing flashing is one of the most common reasons projects stall after tear off.

Flashing and accessory checklist

• Valley flashing sized for pitch and volume, plus any valley liner membrane approach
• Drip edge and eave interface components for gutters and fascia conditions
• Rake edge metal with correct laps and termination approach
• Ridge cap and hip cap components plus required closures
• Sidewall and headwall flashing for every roof to wall run
• Kickout diverters where sidewalls terminate into gutters
• Chimney plan: apron, sides, backpan or saddle, cricket approach, counter flashing approach
• Pipe boots for every penetration with correct sizing and material selection
• Butyl tape, closures, and compatible sealants as required by the system
• Fasteners, clips, and attachment hardware approved for the selected profile
• Underlayment and secondary membranes for eaves, valleys, and critical transitions

Many homeowners order the roof surface correctly and miss the accessory completeness that makes the roof leak resistant. Treat the accessory list as its own scope, verify it against your roof geometry, then place the order.

Inspection checklist: how to catch flashing issues early

You can prevent many failures by inspecting the highest risk zones during install, not after the leak shows up inside.

• Valleys are clean, properly lapped, and free of fasteners in high flow zones where not required
• Sidewalls include correct transitions and kickout diverters where needed
• Headwalls have correct termination and water control back onto the roof surface
• Chimneys have a clear plan for apron, sides, backpan, and counter approach
• Pipe boots are compressed correctly and not located in water traps
• Closures are installed wherever the profile geometry creates an opening
• Tape is placed inside flanges where it stays protected and compressed
• Sealant is used only where required and tooled cleanly, never as the only barrier
